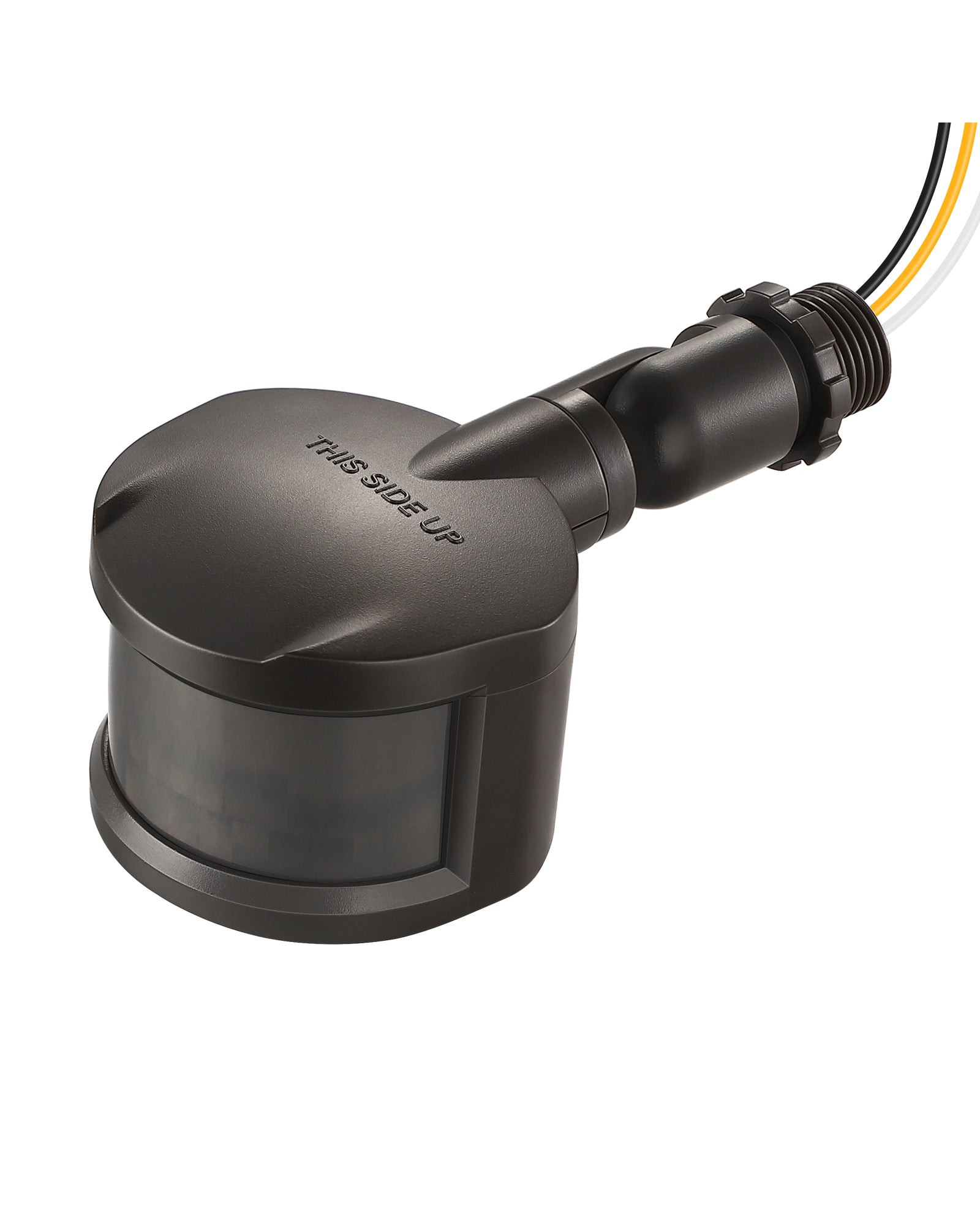

EDISHINE 180 Degree Automatic Dusk to Dawn Brown Motion Sensor-HMSS01A

$18.99 USD
Quantity
示例页面
产品保障标志 Worry-Free Purchase with seel

Worry-Free Purchase with Seel

30-Day Hassle-Free Returns

Local Warehouse in US

Product Specifications


Product Image
180 Degree Replacement Motion Sensor

Designed with longer pivot arm, 180 degrees vertically, 300 degrees horizontally adjustable sensor neck, easier for you to aim the sensor where you want, suitable for most outdoor/indoor wall and eave mount applications, such as porch, back yard, front door, garage, driveway, walkway, step, etc.

Specifications:
Power Requirements: 120 VAC, 60 Hz
Sensing Angle: Up to 180-Degree
Detection Range: Adjustable up to 60 ft. (18m), varies with the surrounding temperature
Operations: TEST, AUTO, D2D, MANUAL OVERRIDE Mode, 10-second to 10 mins Time Delay
Electrical Load: Max. 500W Incandescent Lamp, Max 200W LED DRIVER/ LED Bulbs
Working Temp ℃: -30~50 ℃

Package Includes:
PIR Motion Sensor x 2
Instruction Manual x 1

AUTO MODE

At night, the motion sensor turns lights ON automatically when motion is detected and OFF after a preselected time delay

D2D MODE

Integral photocell effectively works to prevent it from activating during daylight, works automatically in the dark.

Manual Override Mode

Turn the wall switch OFF and ON within 2 seconds, devices will keep ON for 8 hours, auto turn off at dawn.

【3 Modes Control】[AUTO]:The EDISHINE Motion Sensor activates connected devices when motion is detected at night and turns them off after a set delay time. It operates automatically from dusk to dawn, ensuring it is not triggered during daytime. Additionally, it has a Manual Override Mode where switching the wall switch OFF and ON within 3 seconds keeps the devices ON for 8 hours before returning to Auto Mode automatically.

【 Adjustable Delay Time & Detection Range】In auto mode, the EDISHINE Motion Sensor allows for adjustable delayed OFF time after motion detection, ranging from 0 to 10 minutes. It has a wide sensing range of up to 60 feet with a 180° detection angle. The high sensitivity motion detector responds within 10-600 seconds, ensuring both security and convenience.

【Adjustable Sensor Neck】The motion sensor switch from EDISHINE features a sensor neck that is vertically adjustable up to 180 degrees and horizontally adjustable up to 360 degrees. This allows you to easily adjust the sensor to different angles according to your needs, ensuring accurate area monitoring without accidental triggers.

【Easy to Install & Save Money】The outdoor floodlight motion sensor from EDISHINE includes three wire nuts in different colors, making it easy to wire and connect to the power supply and lights. It serves as a cost-effective replacement for motion security floodlight sensors, eliminating the need to purchase a new floodlight kit. Furthermore, it is UL listed for added safety and reassurance.

【Wide Application】With a wide range of input options, including 120V AC 60HZ, the motion sensor switch is suitable for various indoor and outdoor wall and eave mount applications. It can be used with LED bulbs (up to a maximum of 200W), incandescent lamps (up to a maximum of 500W), and flood lights in areas such as garages, yards, driveways, porches, hallways, and swimming pool areas.
